Dyeing Machines

• Applicable Material
• Woven and Knitted Fabrics, Yarn, Garments

• Capacity
• 5 to 10 kg per batch

• Condition
• Other, Excellent

• Control Type
• PLC Controlled Digital Panel

• Dimension (L*W*H)
• 1800 mm x 1200 mm x 2000 mm

• Fabric Type
• Cotton, Polyester, Blends, Silk, Wool

• Fabric width
• Up to 600 mm

• Features
• Stainless steel body, Low liquor ratio, Rapid heating/cooling, Energy efficient, Leak-proof design, User friendly interface, Automated cycle

• Machine Type
• Automatic Sample Dyeing

• Manufacturing Year
• 2022

• No Of Chamber
• 1

• Power
• 5.5 kW

• Pump Type
• High-Pressure Centrifugal Pump

• Speed
• Variable (up to 1000 RPM)

• Temperature Range
• Room Temperature to 140C

• Type
• Sample Dyeing Machine

• Usage & Applications
• Textile dyeing R&D, Laboratory sample dyeing, Quality control batching, Color formulation tests

• Voltage
• 220-240V / 380-415V

• Volume
• 50 Liters

• Weight
• 550 kg

• Applicable Material
• Cotton, Polyester, Viscose, Blends

• Capacity
• 50 kg to 500 kg per batch

• Condition
• New

• Control Type
• PLC based microprocessor automatic control

• Dimension (L*W*H)
• 4000 mm x 1800 mm x 2500 mm (standard size, may vary)

• Fabric Type
• Woven and Knitted Fabrics

• Fabric width
• Tubular or open width up to 2400 mm

• Features
• Low liquor ratio, energy saving, uniform dyeing, robust stainless steel construction, auto dosing, auto drain, programmable cycles, safety interlocks, insulation for thermal efficiency

• Machine Type
• Automatic/ Semi-Automatic

• Manufacturing Year
• 2024

• No Of Chamber
• Single/Double as per model

• Power
• 7.5 kW - 15 kW (model dependent)

• Pump Type
• High efficiency centrifugal pump

• Speed
• Variable, Adjustable via Control Panel

• Temperature Range
• Room temperature to 140C

• Type

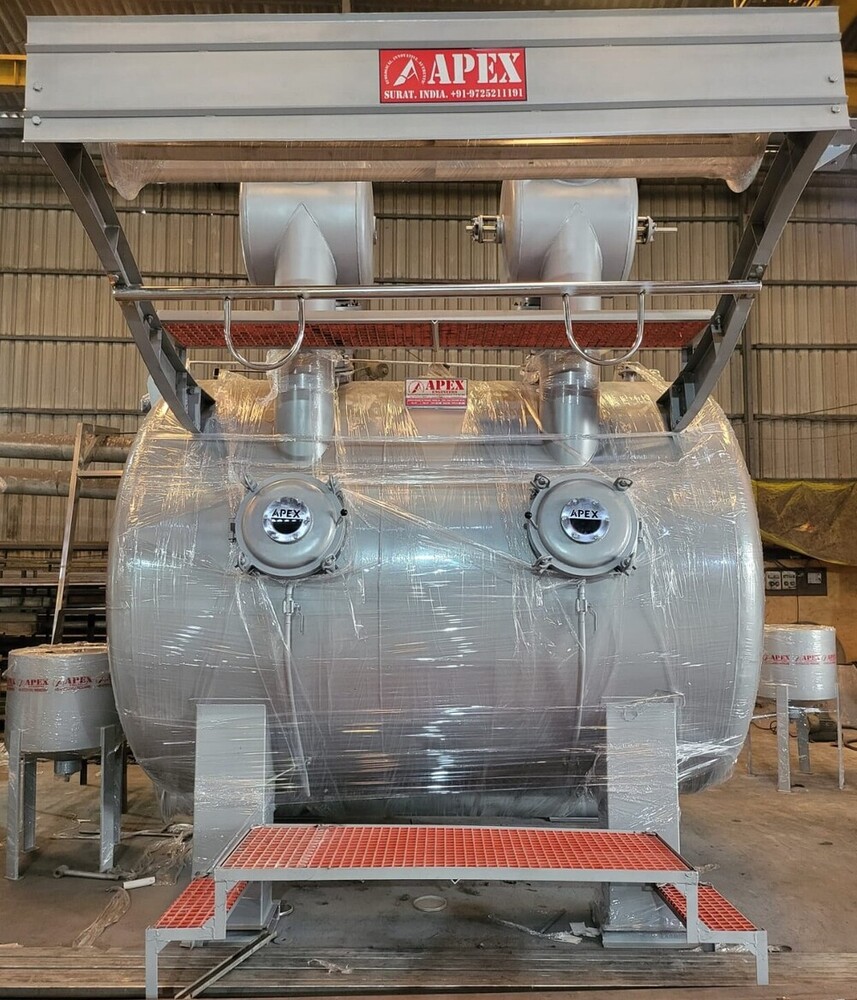

• Soft Flow Dyeing Machine

• Usage & Applications
• Used for dyeing processes in textile industry for variety of fabrics and blended materials

• Voltage
• 380V / 415V (Three Phase, 50/60 Hz)

• Volume
• Depending on model and tank size (e.g. ~2 m3 to 10 m3)

• Weight
• Approx. 2500-3800 kg (depending on model/capacity)
